Final Project: Newtown Gallery

Precedents



The national gallery in Berlin was a research object that I did in History 1 course, last year. It is also the last masterpiece by Mies. With a continuation of ‘less is more’, this gallery became a simple square plan with four curtain facades and crowned by a flat square steel roof.
I was impressed by the way he played with glass and steel. I believe this gallery is successful whether the relationship he created between itself and its surroundings (which is achieved by the curtain walls) or the functions of a gallery.




This is another project with a distinctive fa├žade which also inspired me a lot. The location of this project is in United States. Its south facades feature 31 aluminum louvers that continually move to shade the interior and diffuse the natural light from the sun.

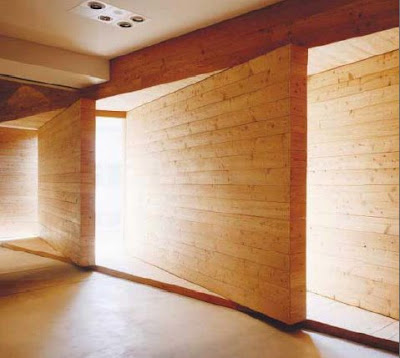

Here is an insteresting sitting funtion of a art gallery.

After studies of these galleries, I decided to create a gallery which will have impressive facades which may have an interesting relationship with its surrounding streets as well as an ideal natural function to adapt the sunlight in order to fulfill the basic light standard of a gallery.

PLANS,SECTIONS AND PERSPECTIVES


Site Plan 1:500


Plans 1:100



Sections 1:100


Poches 1:50


Perspective Drawings


Sketchup Images


Photo 1 shows the street view of Newtown gallery.


Photo 2 shows the main entrance and its facade.


Photo 3 shows the south/back facade with a second entrance.


Photo 4 shows a main interior scene, the corridor.


Photo 5 shows owner's private apartment space.

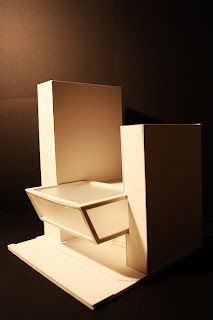

Model Photogrophs
